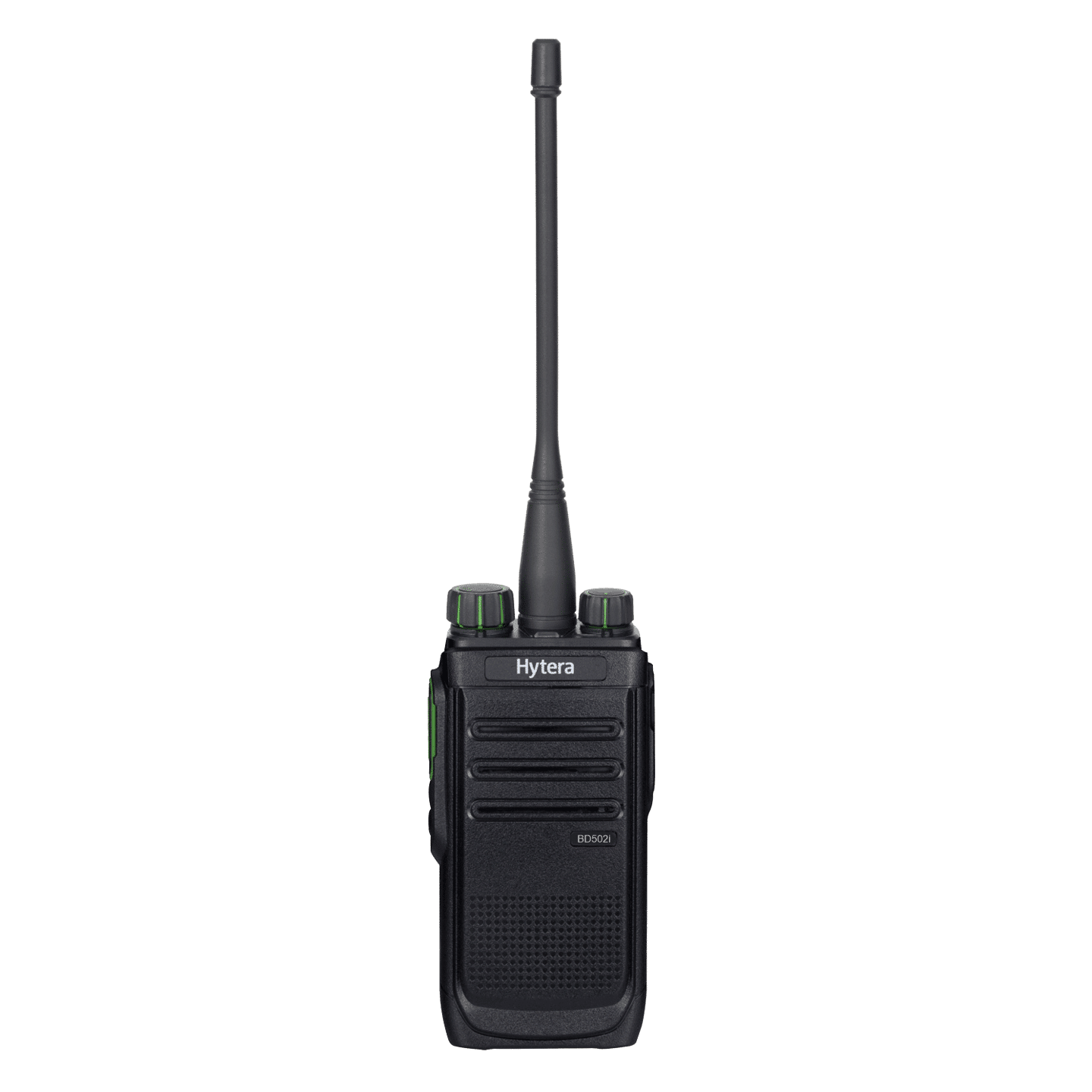

BD502i-OBR Two-Way Radio

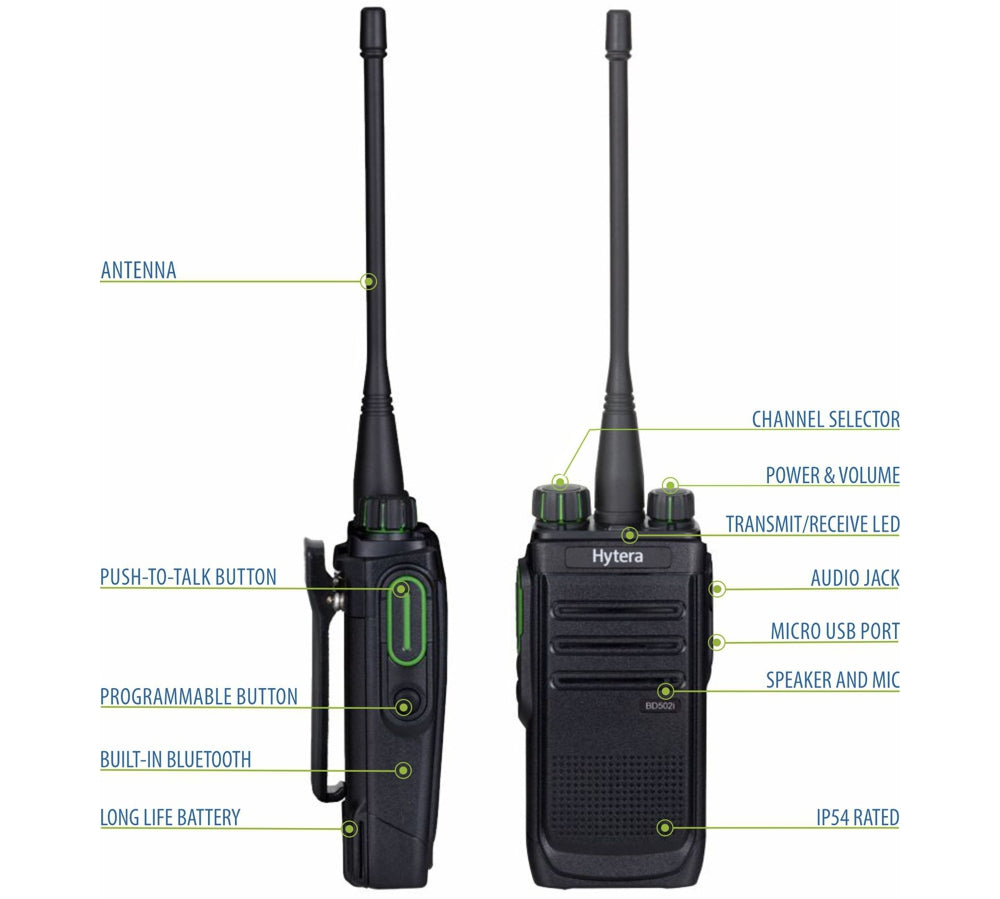

ERGONOMIC AND EASY TO USE

• Tactile buttons for no-look PTT and emergency calling

ANALOG OR DIGITAL OPERATION

• The BD502i-OBR operates in analog or digital mode
• Allows switching between the two operation modes for communication with analog radios
• Enables simple and cost-effective migration path to digital

HIGH QUALITY AUDIO

• Audio equalizer adjusts low, mid, and high frequency gain
• Provides the best audio performance in noisy or quiet environments

LONG-LIFE BATTERY

• Powerful 1500mAh Lithium Ion batteries deliver up to 16 hours of operation in digital mode and 12 in analog mode

RELIABLE AND DURABLE

• Compliant with MIL-STD-810-G for shock and vibration
• IP54 rated for water and dust resistance

EMERGENCY CALLING

• One-touch Emergency Alarms can be sent to other radios with the programmable button
• Improves worker safety and emergency response time

ANTI-INTERFERENCE

• Digital encoding and error correcting reduces signal interference on the same frequency

AUDIO CHANNEL ANNOUNCEMENT

• Channel number voice announcement for fast and accurate channel switching, even in low visibility

VOX

• Voice activated microphone enables hands free operation
• Also supported on external earpiece and microphone accessories

SCANNING

• Allows listening to communications on other channels

Frequency Range

• UHF 400-470MHz

Channel Capacity

• 48 Channels (24 Analog, 24 Digital)

RF Power Output

• UHF High Power 4W, Low Power 1W

Battery

• 1500mAh (Li-Ion)


Battery Life (5/5/90)

• 16 hours Digital, 12 hours Analog

Weight

• 5 ounces

Dimensions

• 4.25 x 2.125 x 1.16”

Operating Temperature

• -22 °F to + 140 °F

Dust and Water Ingress

• IP54 Standard

Humidity, Shock and Vibration

• MIL-STD-810 C/D/E/F/G Standard
